Mission 04 · Lesson 14

Meet your robot

Electronics & Robotics

35–50 min + optional 15 min

Work at your pace. Take a break between stages; there is no countdown.

You need: paper, a pencil and this lab. A helper is welcome for reading and discussion.

Connect to what you know

A bulb makes light. A robot’s motor turns electrical energy into movement. Your algorithm can control it.

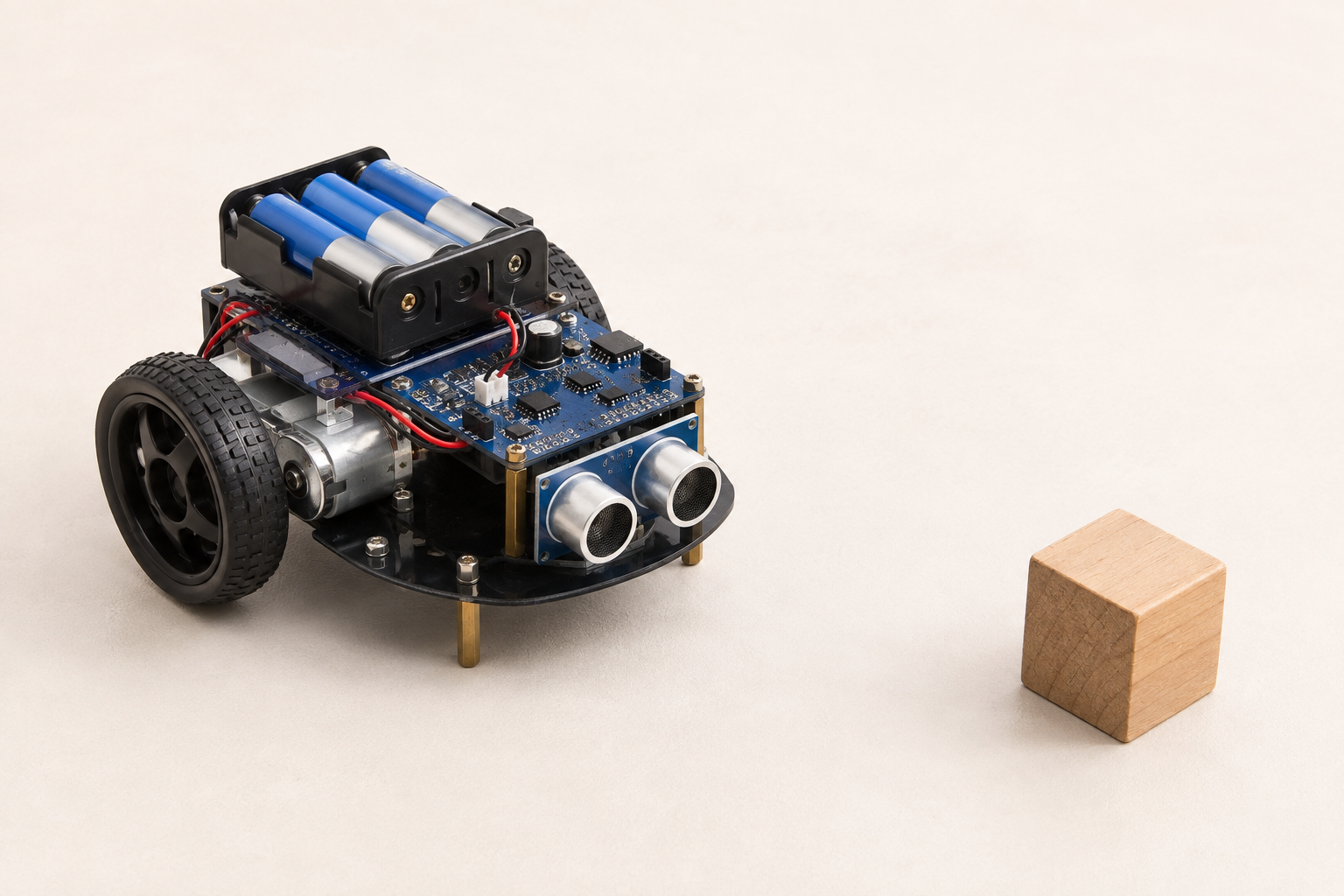

Educational robot with front distance sensor, controller board, battery and wheel motors
Educational robot with front distance sensor, controller board, battery and wheel motors. Generated teaching illustration. Shapes and relative sizes are simplified; this is not a construction plan.

Understand it, step by step

  1. 1

    A robot combines power, a controller and actuators such as motors. The controller follows a program; wheels do not decide where to go.

  2. 2

    Our grid model uses absolute arrows, just like your drawing program. Each command moves one square. It does not model wheel slip or turning mechanics.

  3. 3

    Plan the entire route before running. Walls block movement. A program that works on one map may fail on another.

Watch a worked example

From the bottom-left, ↑ ↑ → reaches a point two rows up and one column across. Moving → first can fail when a wall is immediately to the right.

Pause and predict

Which command would meet the first wall on this map?
